Wedge gasket for machinery glass 6mm glass / 3mm frame
Product Description

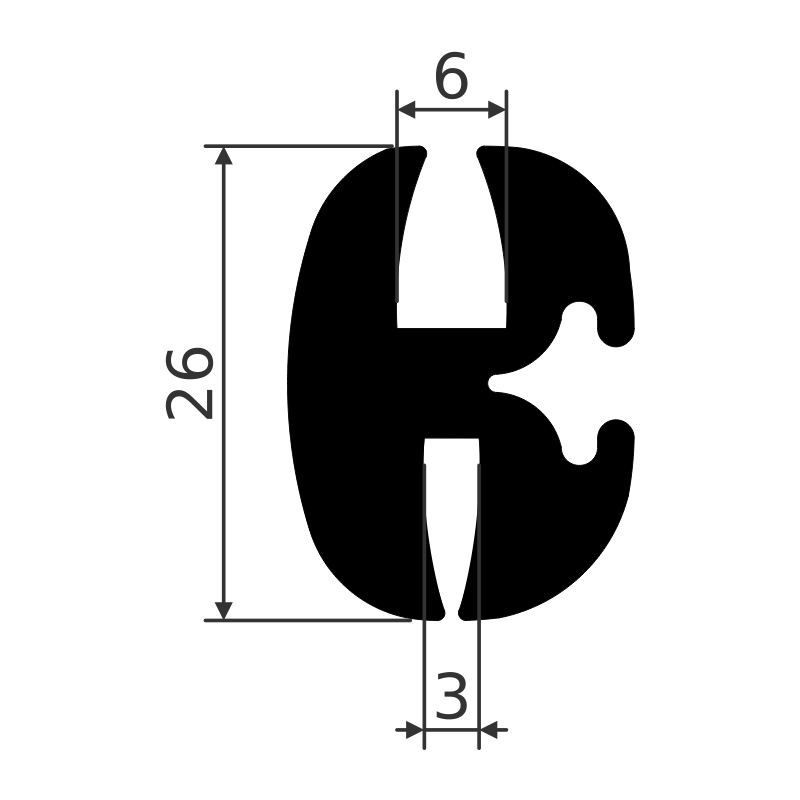

EPDM wedge gasket for installing glass directly to frame in machinery, excavators, tractors etc. Glass 6mm, frame 3mm, partition wall thickness approx. 7mm. Black. Price includes wedge gasket tape (same quantity).
Usage Instructions
IMPORTANT: Size the glass at least 8-9mm smaller on each side than the opening. Press the gasket into the frame, cut to appropriate length while the gasket is already in the frame, press the gasket tightly against the outer edges of the frame. Install the glass by sliding it into the glass channel - open the glass channel with a hook tool and push the glass into the channel simultaneously. Go around the entire perimeter in the same way. When the glass is in place, install the wedge strip into the wedge channel - this prevents the glass from coming loose by pressing/wedging the gasket against the glass.
